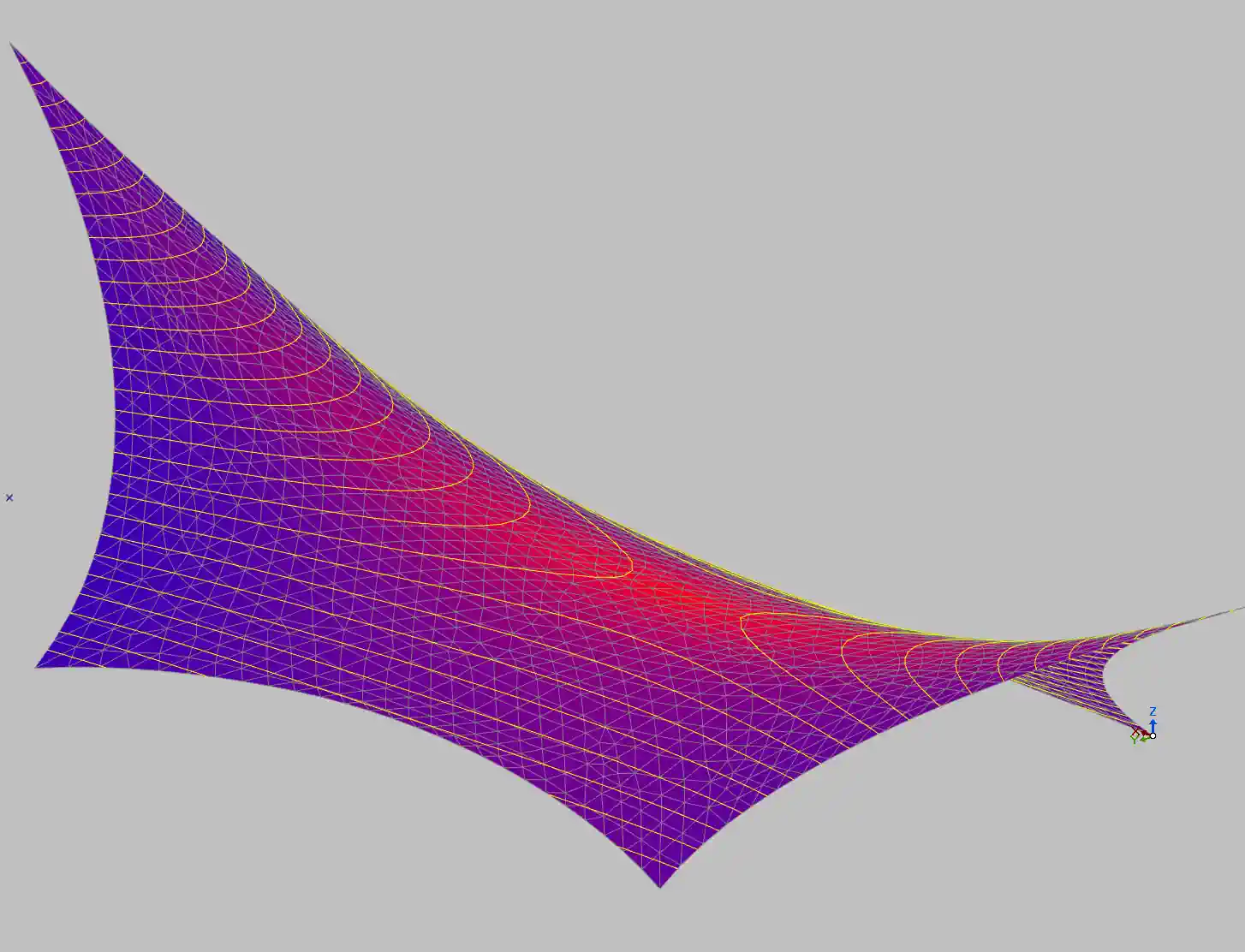

Form-finding
Finding the equilibrium shape under given boundary conditions.The algorithms used in the K3-Tent software allow for finding the surface shape without bubbles or wrinkles.
K3-Tent Software
K3-Tent is a software suite intended for designing tent structures. The software helps speed up the compilation of design documentation and improve the quality of manufacturing order preparation for any tent structure shape. The K3-Tent suite provides highly visual and effective tools for designers to work with surfaces of any complexity. In addition, K3-Tent significantly reduces the time required for finding the shape of the envelope, visualizing the final structure, marking a cutting line, and unfolding pieces. The K3-Tent suite is a further development of the FABRIC CAD System.
K3-Tent software allows you to create various shapes limited only by your imagination.

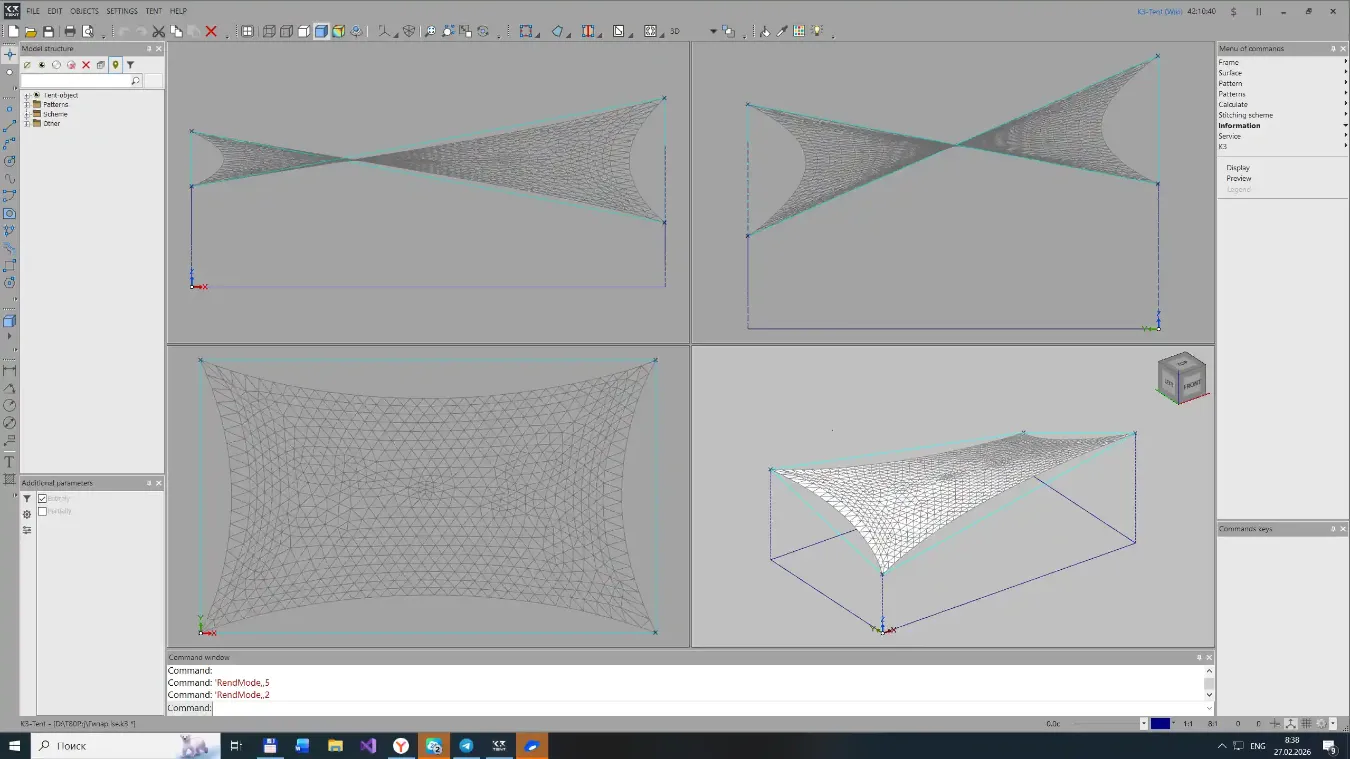

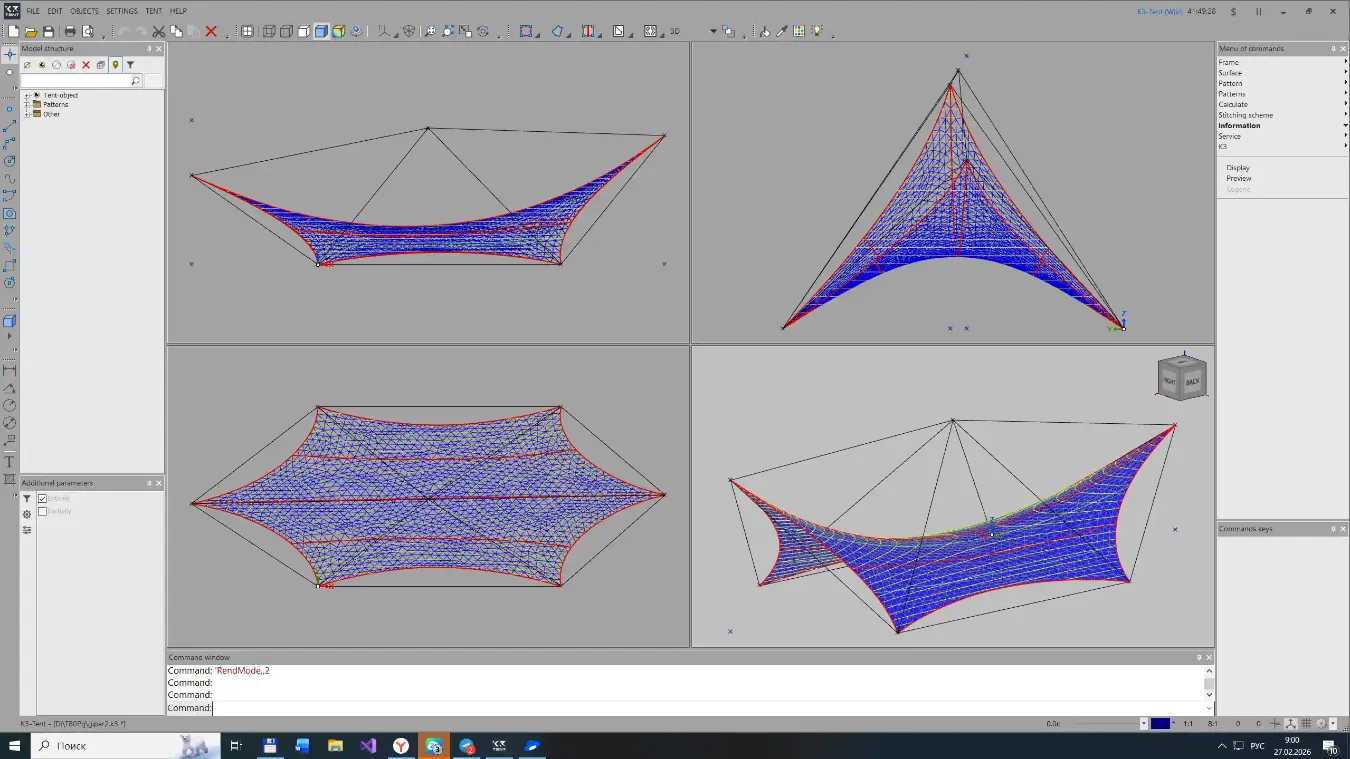

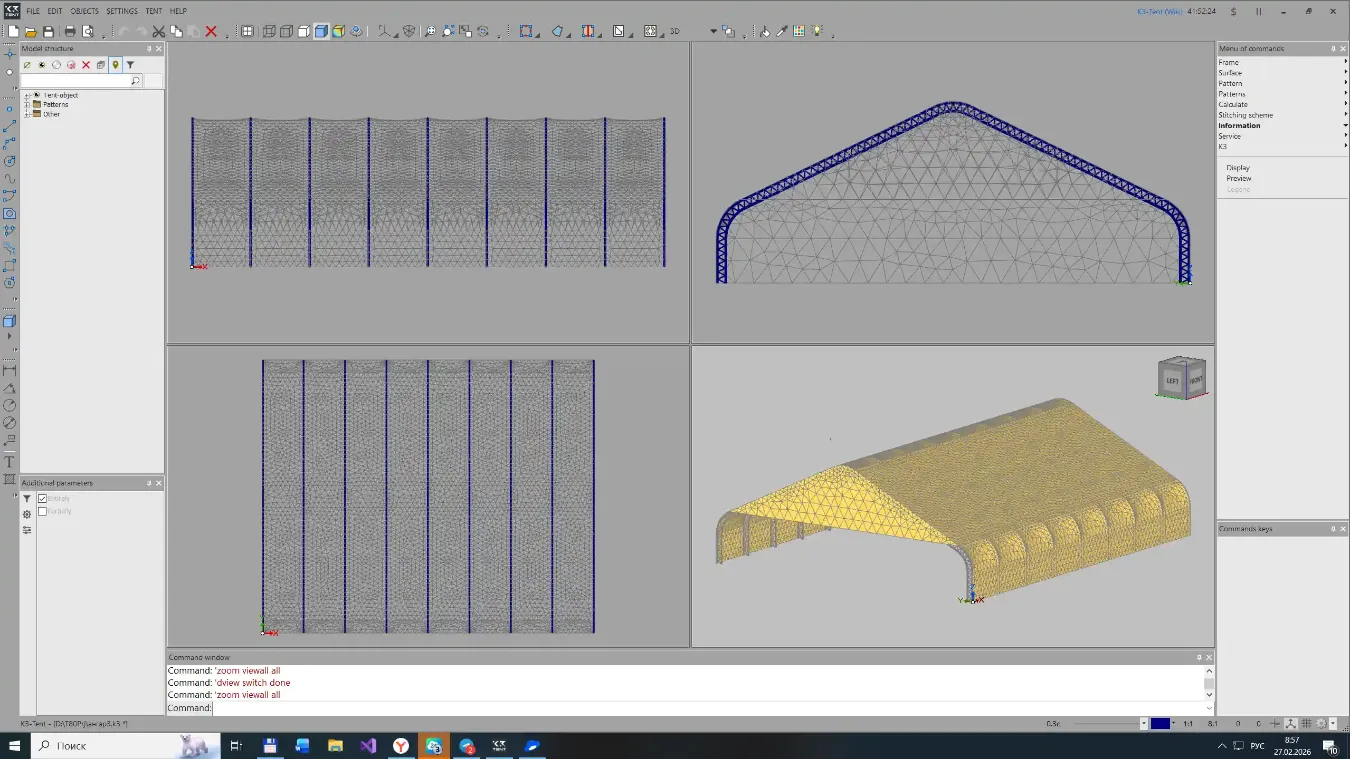

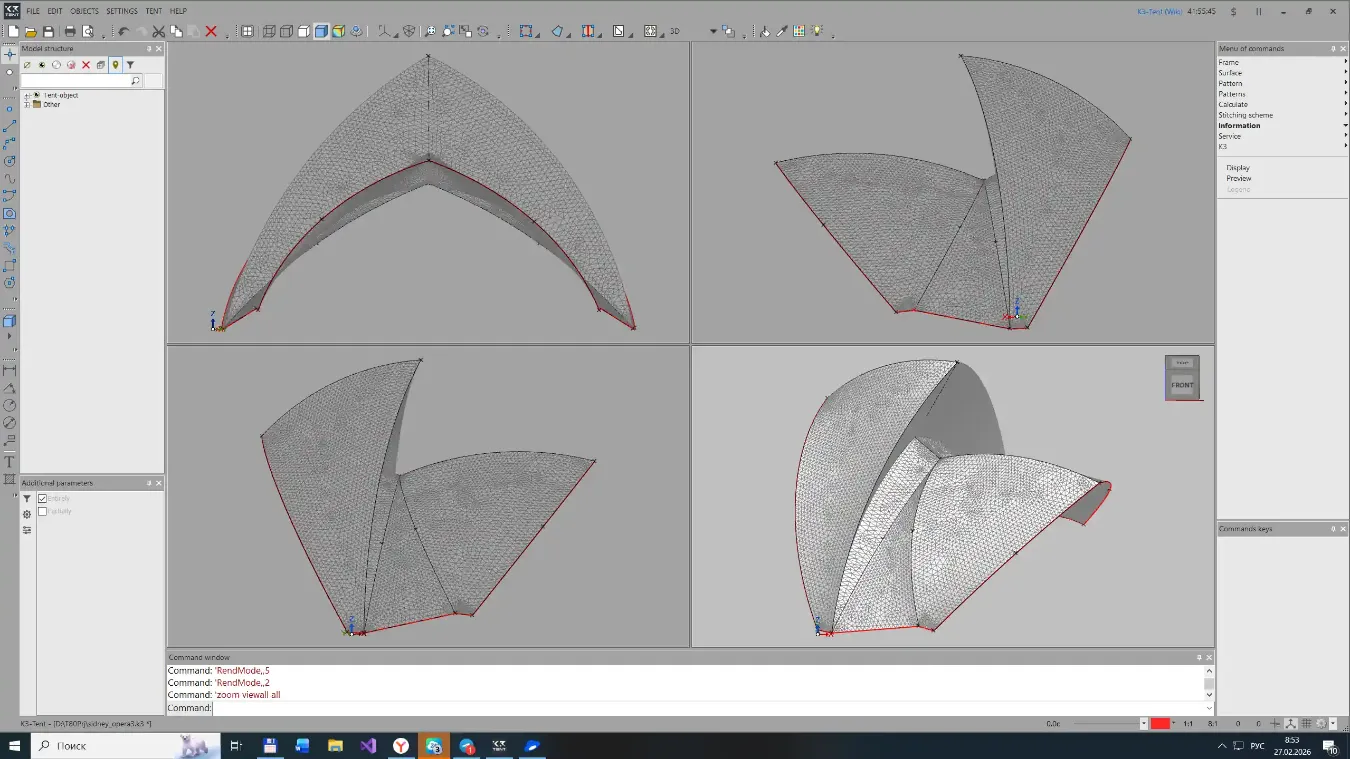

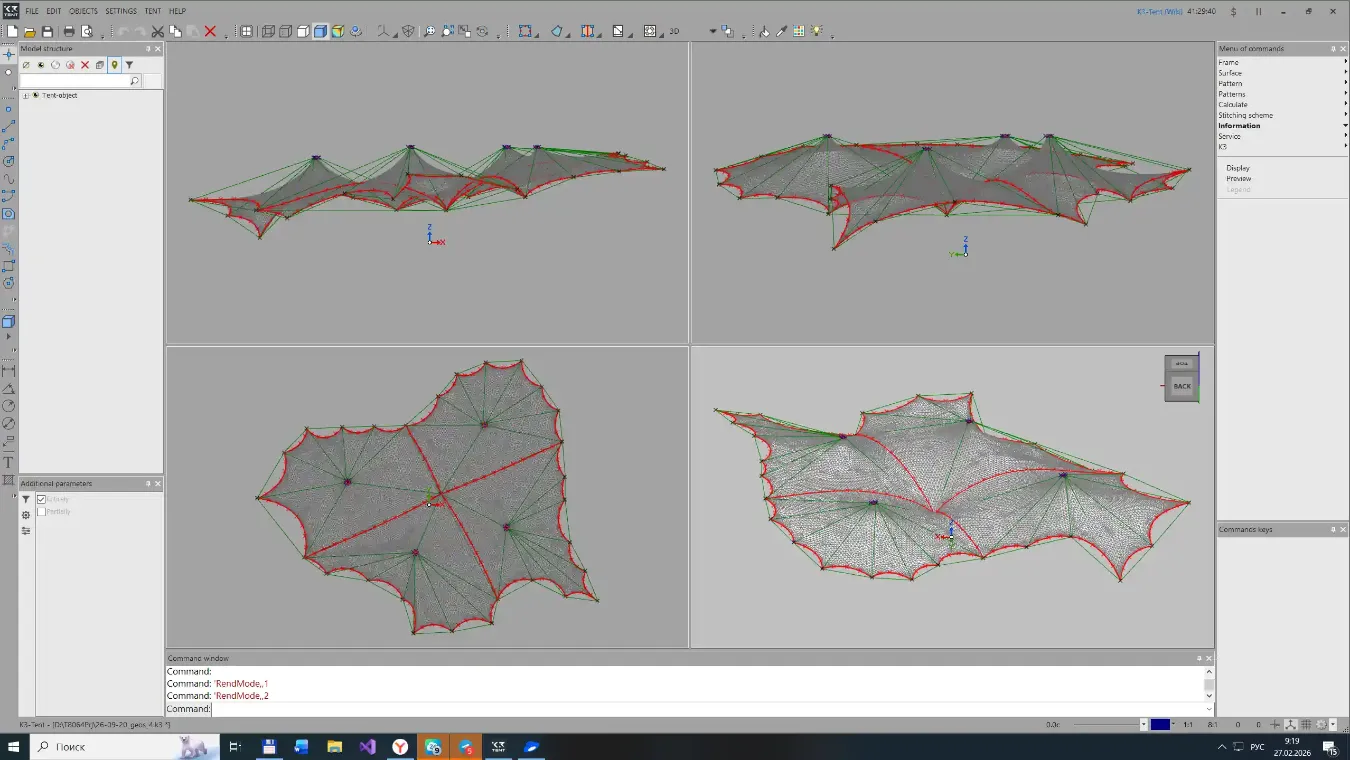

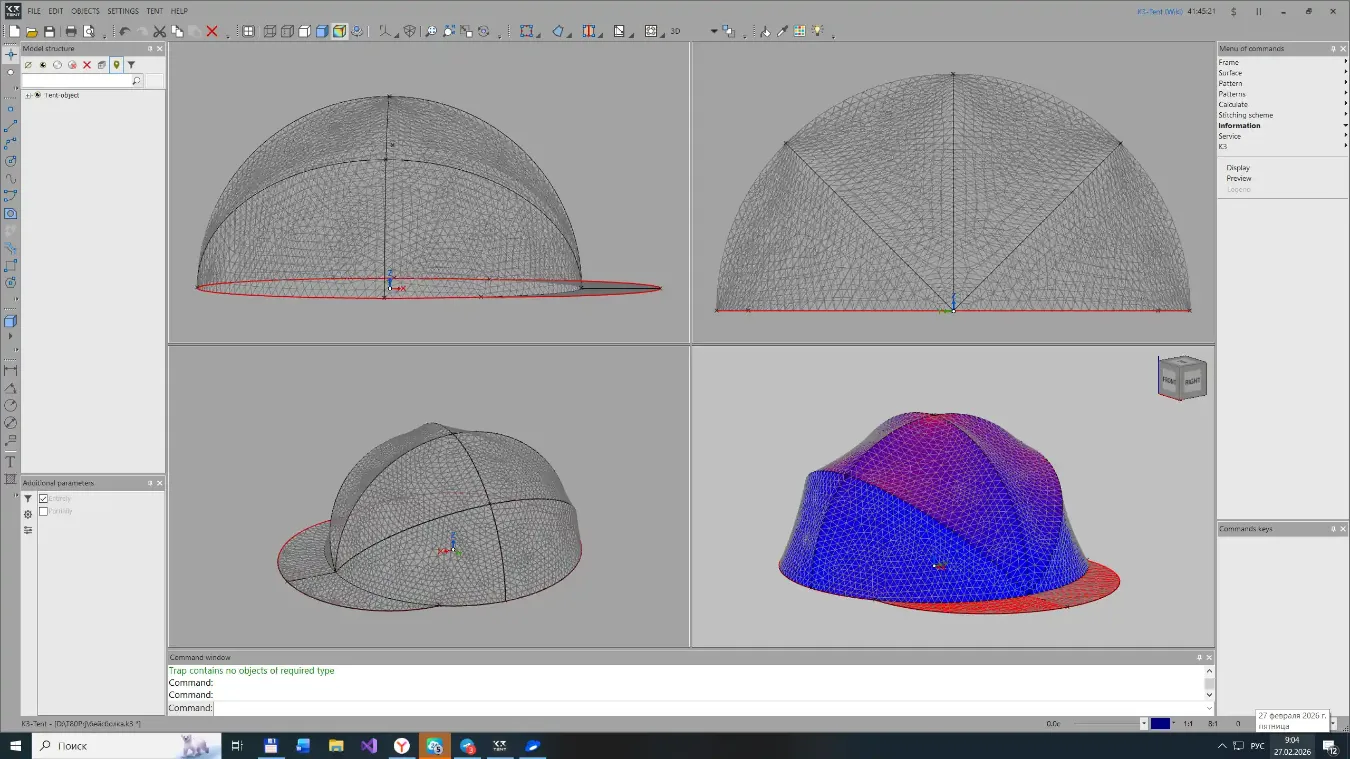

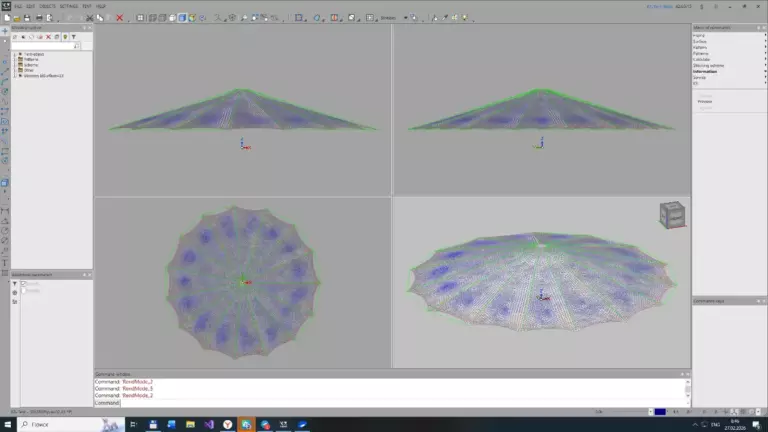

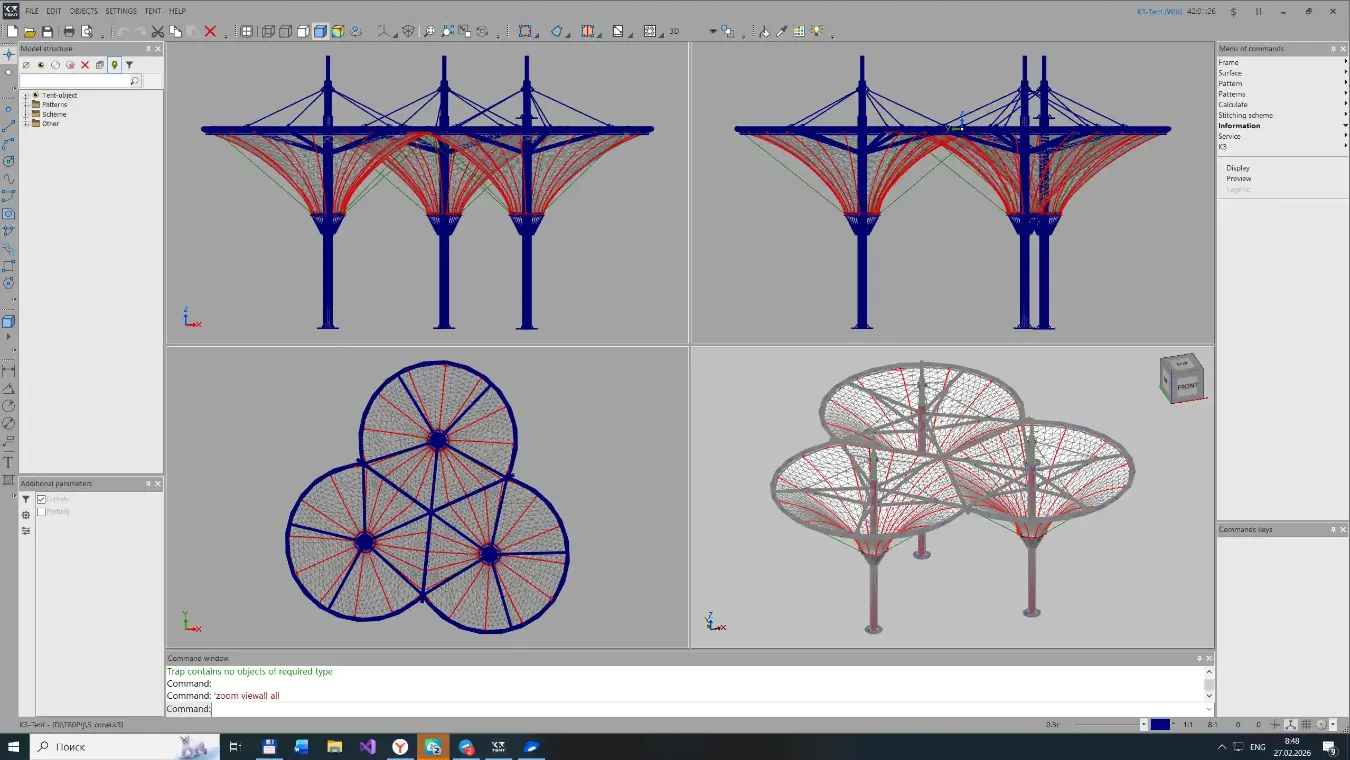

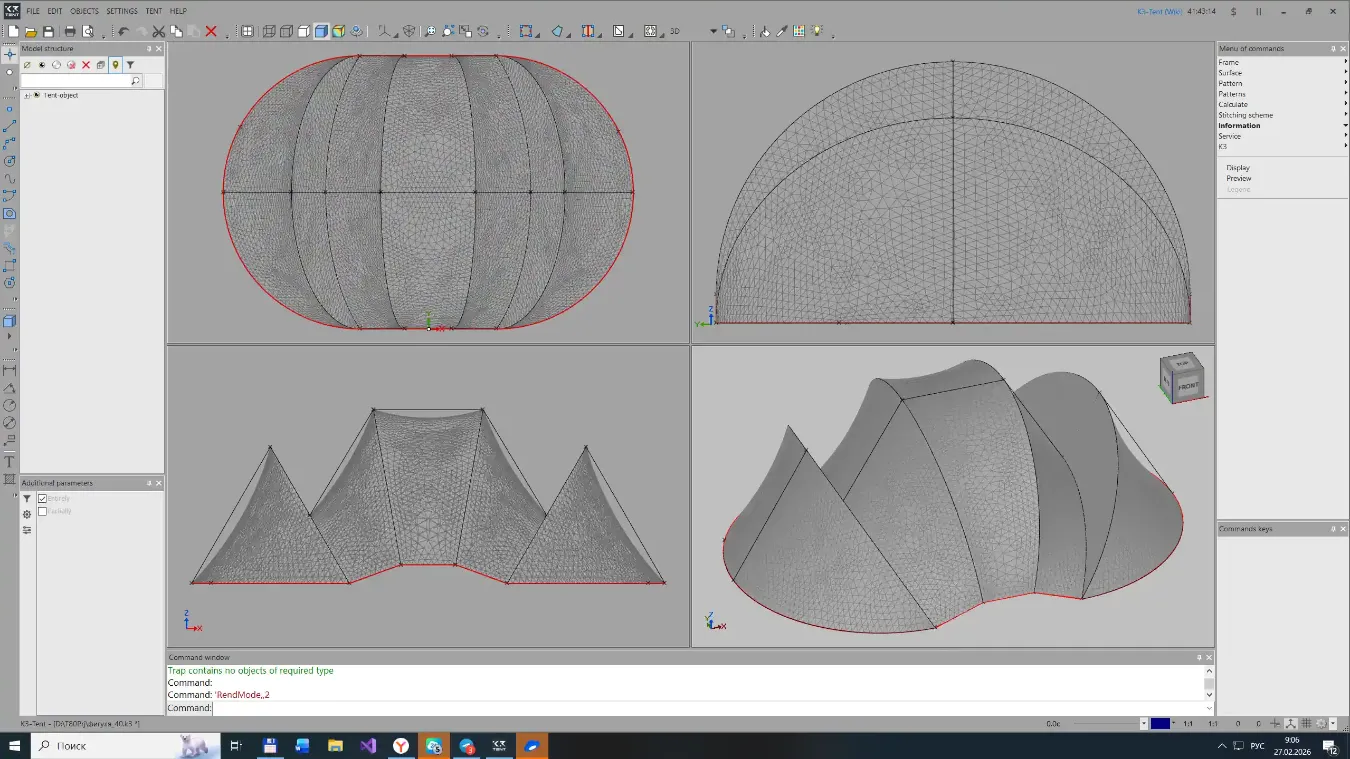

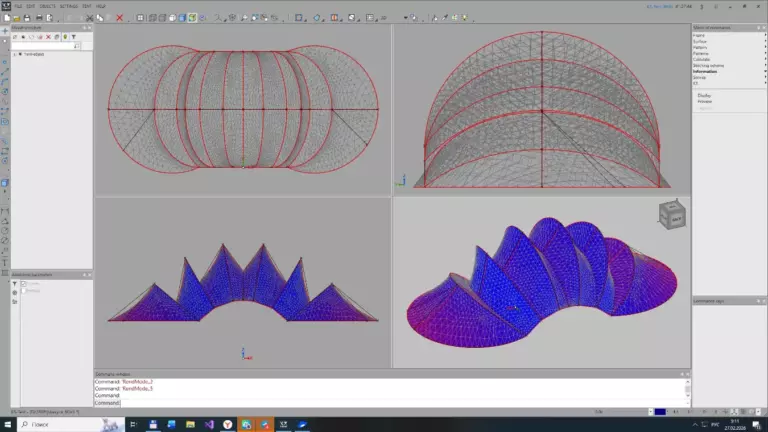

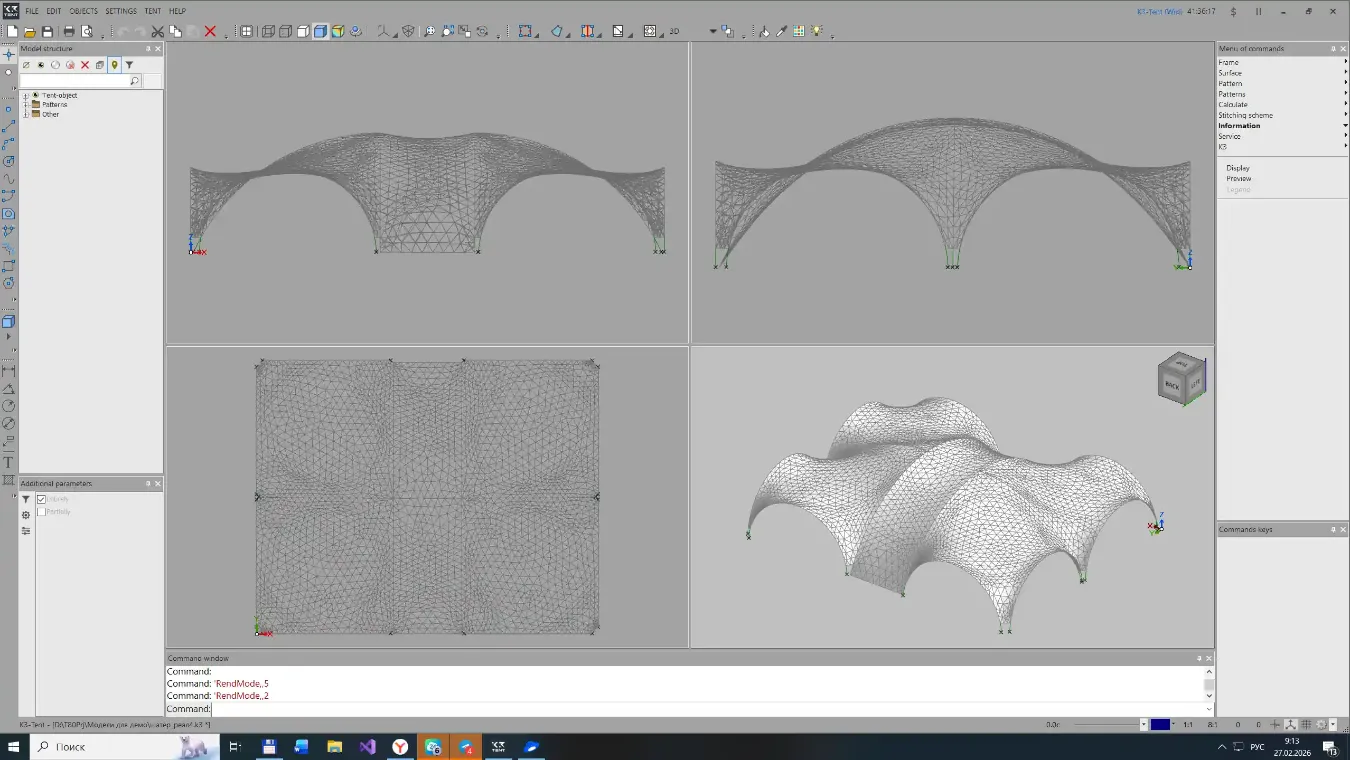

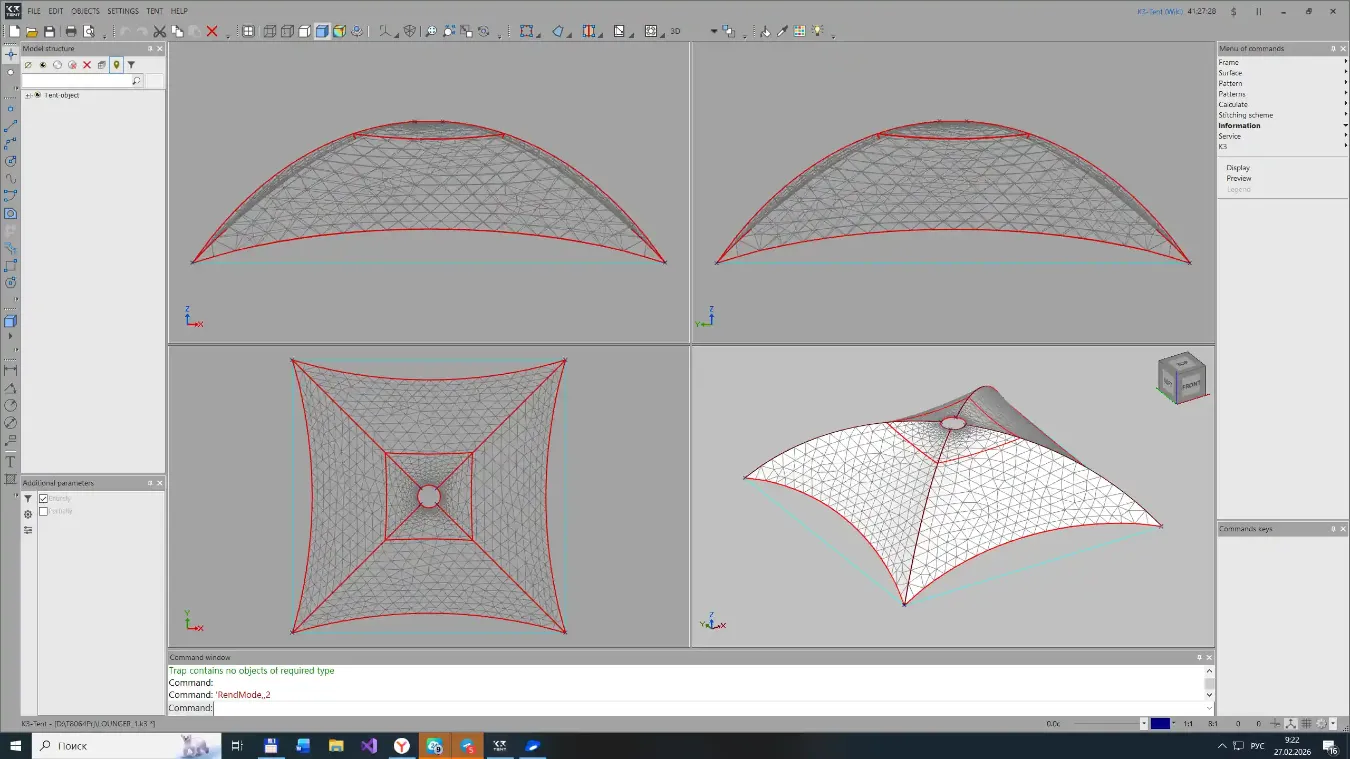

Examples of shade sail models
K3-Tent software allows you to create various shapes limited only by your imagination.
What К3-Tent software provides
K3-Tent is a complete software solution for engineers and architects working with tensile membrane structures. Whether you need to design a small shade sail or a complex stadium roof, K3-Tent provides specialized tools for every stage of the project: from initial form-finding to precise cutting pattern generation.
Cutting line
Tracing future cutting lines. Three methods for constructing the line: the shortest line, intersection with a vertical plane, or intersection with an arbitrary plane.
Creating patterns
Creating a pattern taking into account the seam (weld) width. Generating a coordinate grid for transferring the pattern to the fabric.

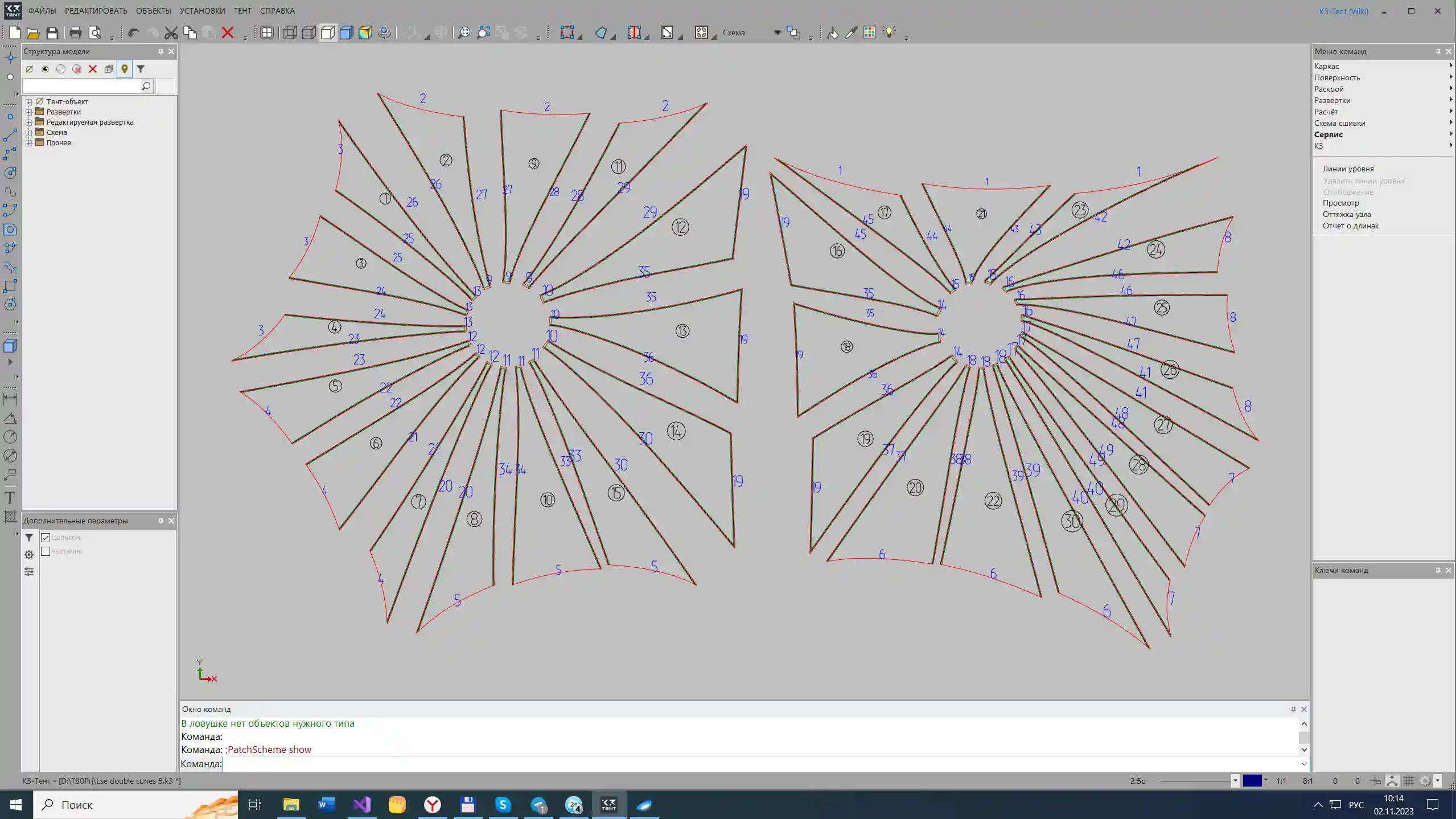

Stitching patterns
Creating a stitching scheme

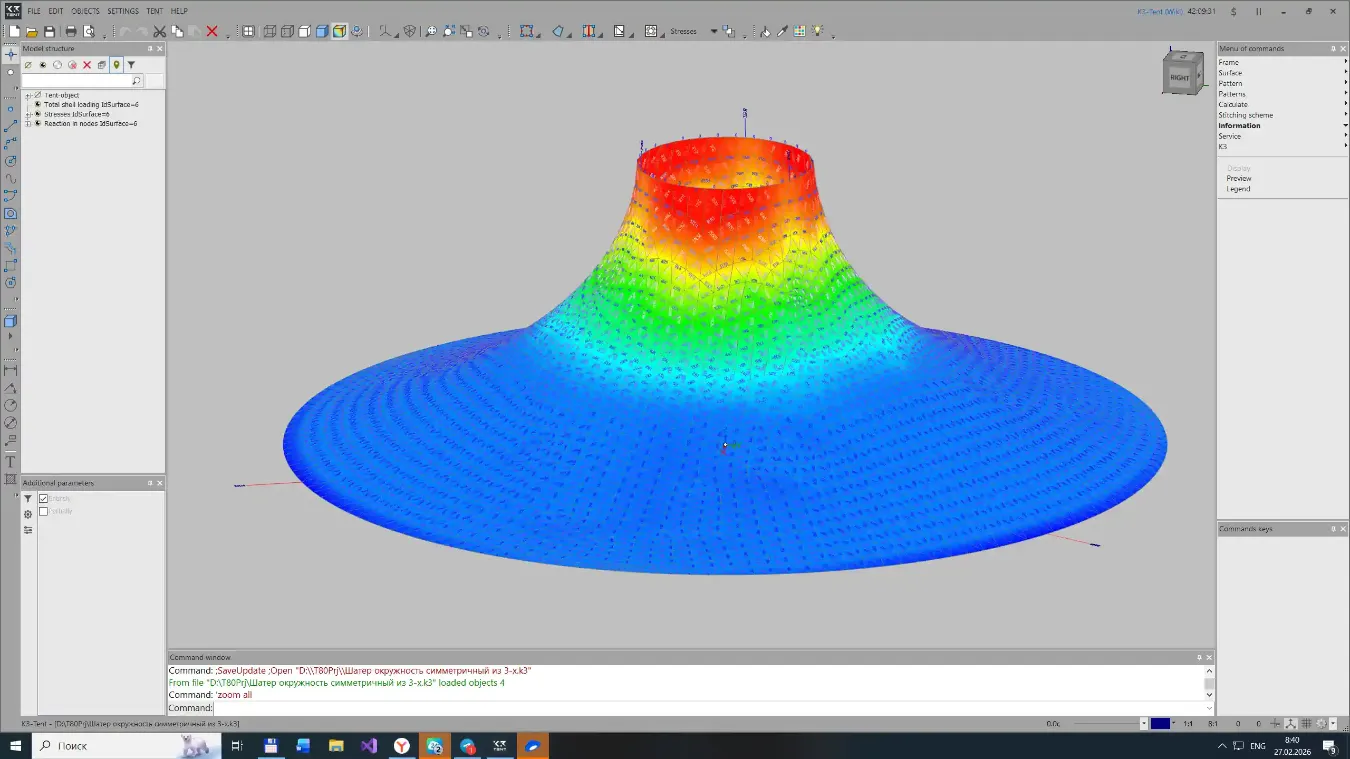

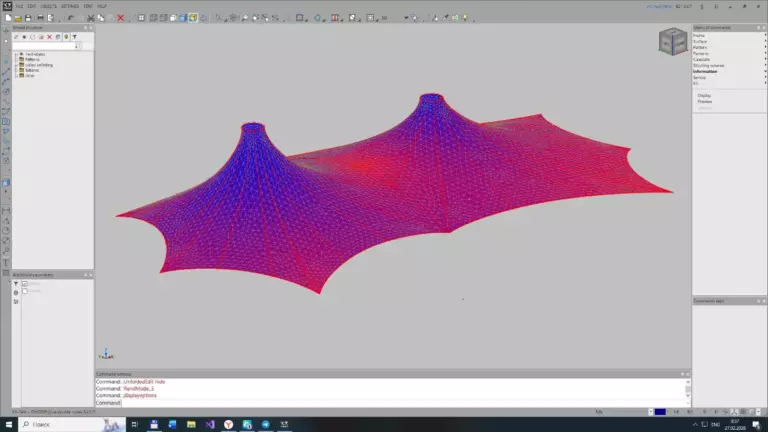

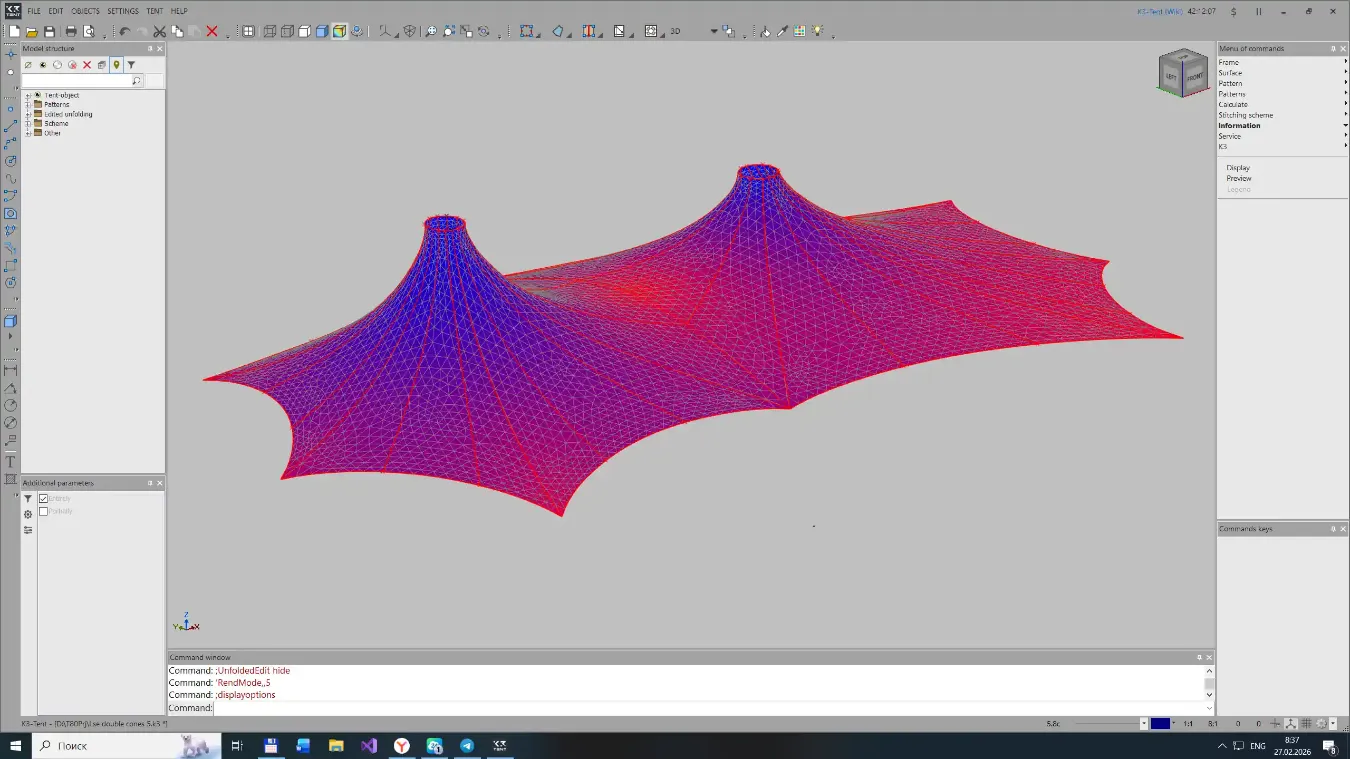

Overall stress heat map
K3-Tent software automatically calculates and visualizes a heat map of the overall stress distribution on the fabric membrane, and also calculates the reaction forces at the membrane attachment points.
Surface curvature analysis
You can analyze the surface shape using contour lines (isolines) or a heat map of the normal deviation from the vertical axis.

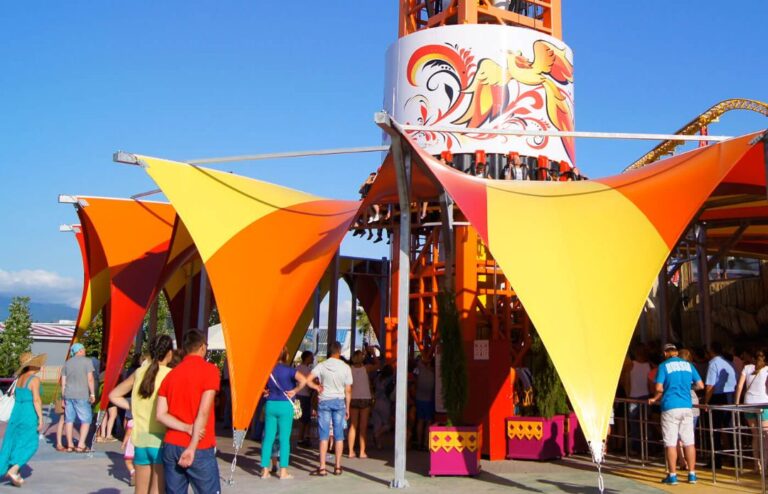

Customer Projects

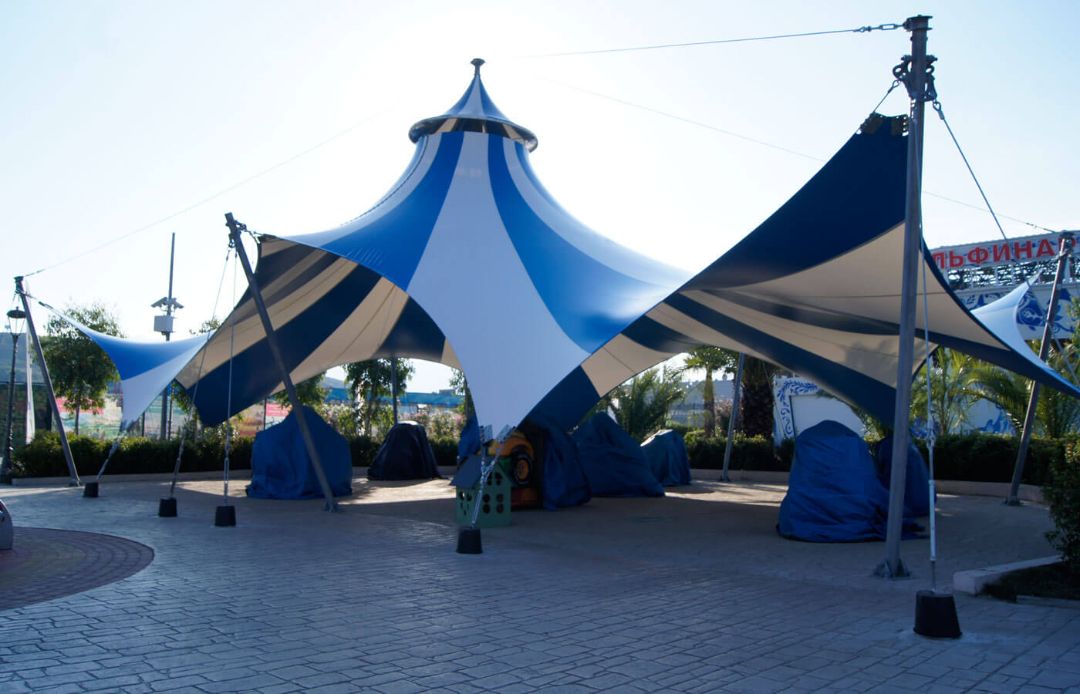

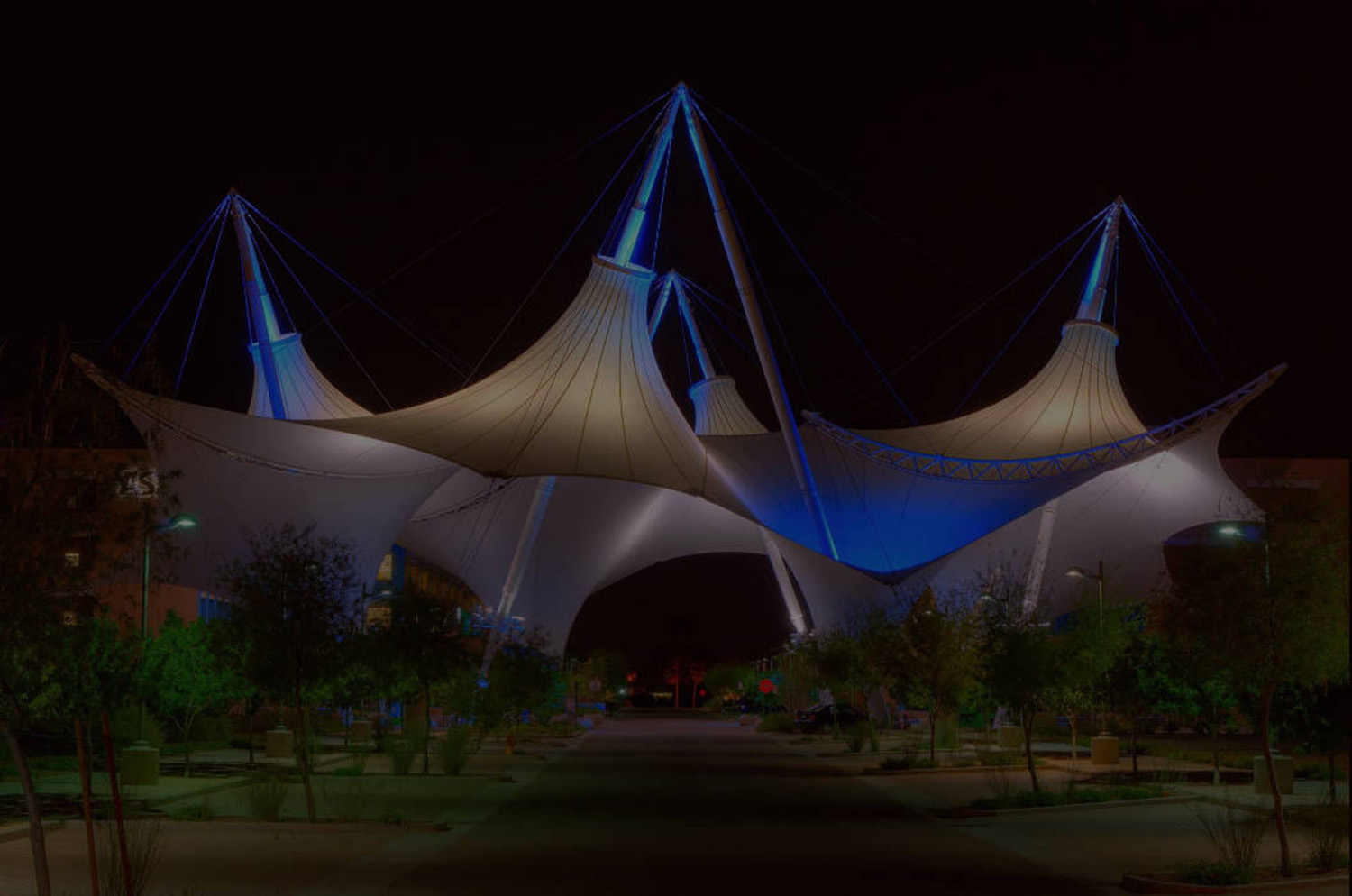

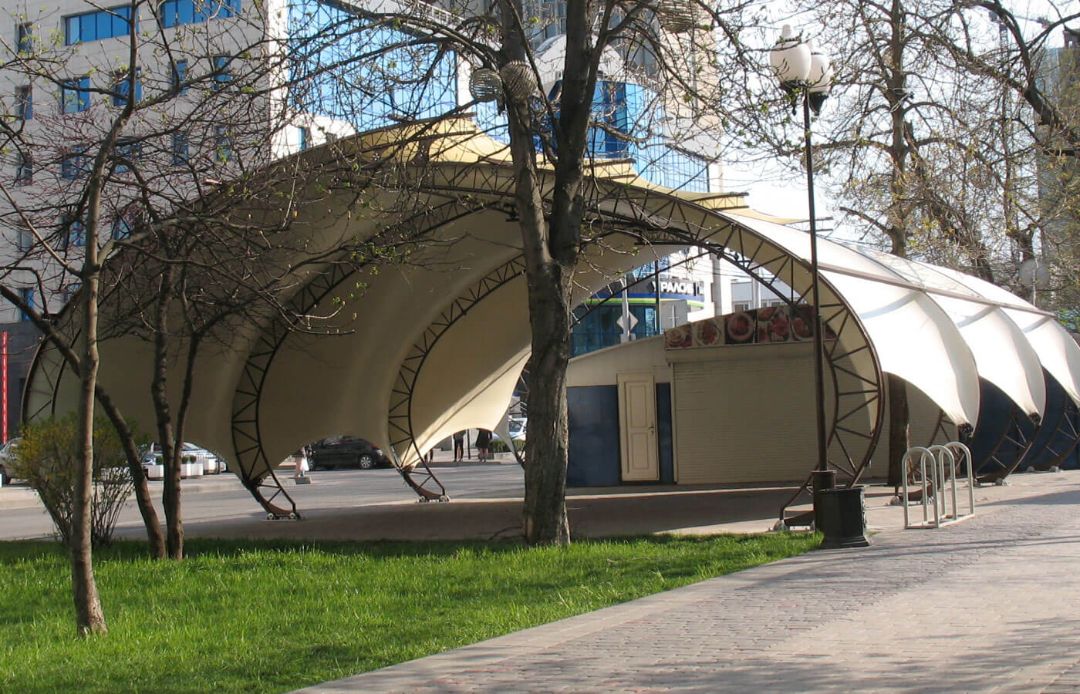

Certain photos of our customers’ projects. All projects are designed in the K3-Tent Software.
K3-Tent
K3-Tent
K3-Tent
Prices
We offer flexible licensing to suit your project needs: perpetual licenses for continuous use and short-term 1-month licenses for specific projects. Contact us for a personalized quote tailored to your requirements.
To make a purchase, please contact us by email at sale@k3info.ru.
Recommended system requirements:
Processor 3-GHz ;
Computer memory 16 GB;
Graphics card NVIDIA with 1 Gb memory or more;
Monitor diagonal 20" and more. Screen resolution 1600х1200;
Two-button mouse with a scrolling wheel;
Free 3 Gb of hard disk space;
Supported operating systems Windows 7, 8, 10, 11
Minimum system requirements:
Processor 1.8 GHz;
Computer memory 4 Gb;
Graphics adapter 512 Mb of memory;;
Free 3 Gb of hard disk space;
Standard mouse;
Supported operating systems Windows 7, 8, 10, 11
